Total Solution for Structural Optimization
OPTISHAPE-TS
OPTISHAPE-TS is a structure optimization software useful for designing and developing all sorts of machine parts. (for motor parts, electric apparatus, construction, etc...)
It proposes the structure that you want, by adding dynamics/production requirements. (the most lightweight shape, the superior structure of the vibration characteristic without changing mass, etc...)
The Various Structure Optimization Functions
OPTISHAPE-TS allows you to use the various structure optimization functions: "Topology Optimization", "Nonparametric Shape Optimization", "Bead Optimization".
For Detailed Design
"Nonparametric Shape Optimization" transforms the structural surface freely and finds the most suitable shape.
It is useful during the detailed design stage, when you need to consider various mechanical and production requirements such as stiffness, intensity, and vibration characteristics.
For Preliminary Design and Research Stage
"Topology optimization" is the structural optimization technique that is able to make free material layout.
It is useful during the preliminary design and research stages when you want to obtain a rough layout of your products.
For Sheet Metal Design

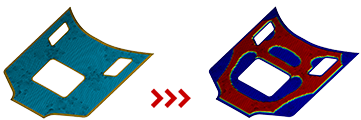

"Bead Optimization" is the structural optimization technique that is specifically focused on obtaining the beads of flat sheet shapes.
Consideration to Production Requirements
OPTISHAPE-TS includes various functions designed to meet production requirements in optimization analysis.
Includes FEA Solvers
OPTISHAPE-TS incorporates various FEA Solvers that essential for structural optimization.
Analysis Time
While it depends on the model and the analysis, the time required is typically 50 to 100 times the duration of one finite element analysis. For example, if a single static elasticity analysis takes one minute, optimization for static stiffness and stress will take approximately 50 to 100 minutes.
