Total Solution for Structural Optimization
OPTISHAPE-TS
Bead Optimization
Bead Optimization

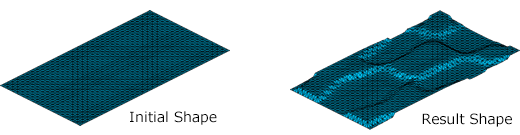

Bead optimization involves moving shell elements in the normal direction to propose the optimal layout under given conditions.
Cost Functions
You can use the combination of the following items which you need.
(ex. Volume Constraint, Stiffness Maximization)
- Compliance (Stiffness)
- Maximum Mises stress
- Maximum principal stress
- Minimum principal stress
- Eigen Value(*Optional license required)
Analysis case

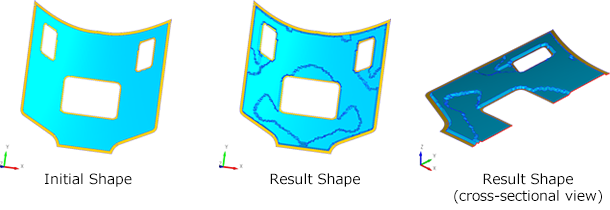

Reinforcement Layout of Bonnet

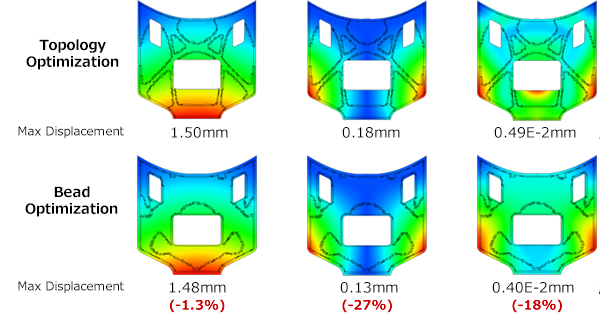

Comparison with topology optimization

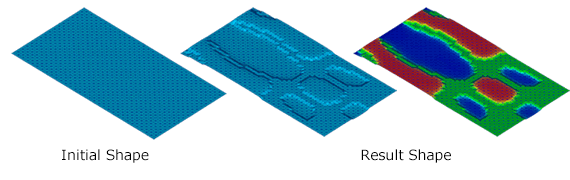

Bead optimization with 2 steps gray scale area
Generates a bead shape offset in two stages.
In the contour display of the result, the first stage is colored green, and the second stage is colored red.
